TouchBoard
G80-11900
| Product name: |
Order number: |
Layout (country or language) |
Housing colour: |
Key colour: |
Current Consumption: |
Interface: |
Product approvals: |
System requirements: |
Delivery Volume: |
Number of Keys: |
| TouchBoard G80-11900 |
G80-11900LUMEU-0 |
US English with EURO symbol |
light gray |
light gray |
max. 100 mA |
|
- cURus
- c-tick
- VCCI
- CE
- FCC
- ÜG-VDE
|
|
- Operating instructions in hard copy
|
104
|

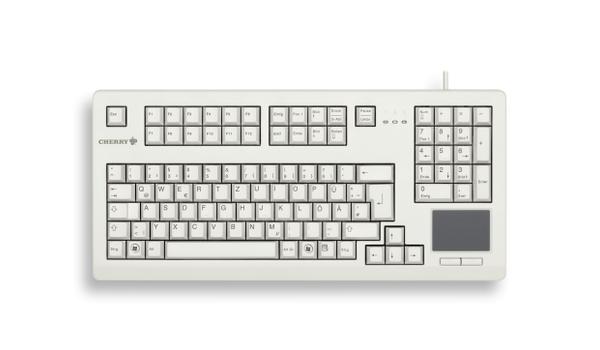

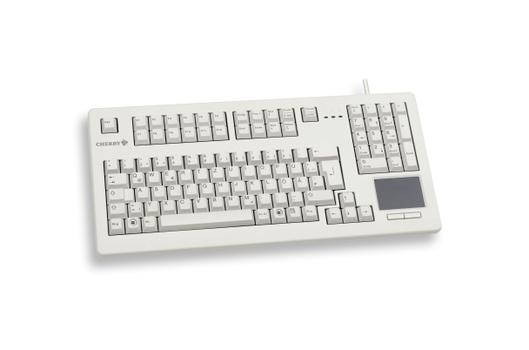

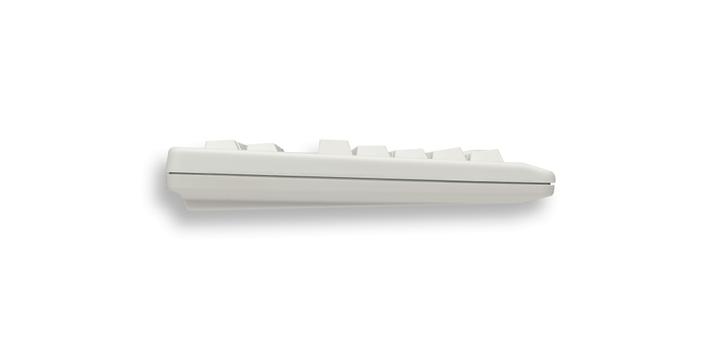

Compact keyboard with built-in touchpad
The multifunctional TouchBoard is the perfect solution for limited spaces in situations requiring the functions of a "mouse". Particularly in hard industrial applications, the Cherry keyboard shows what she is made of. The model combines outstanding quality with long service life and precise, easy-to-operate touchpad.
Features:
- Individual keys with Gold Crosspoint contacts (MX technology)
- Designed for continuous usage - over 50 mill. confirmations per key
- Robust and reliable
- Space-saving and ergonomic
- Ideal for limited space and 19" applications
- Can be used with the standard drivers of the operating system
- USB keyboard: the following keys can be programmed freely using KeyM@n software (software macros) in 3 levels (single confirmation in combination with "CTRL", in combination with "SHIFT"): function keys "F1"-"F12", "INSERT", "DELETE", "POSITION1", "END", "PAGE-UP", "PAGE-DOWN", "PRINT", "PAUSE", comma and zero in the numeric field.
Specifications:
Weight (product): approx. 1000 g
Total weight (with packaging): approx. 1200 g
Dimensions (product):
- approx. 415 x 193 x 37 mm
Packaging dimensions:
- approx. 447 x 250 x 45 mm
Reliability:
- MTBF > 100,000 hours
- MCBF > 10 bill. operations
Keyboard:
- Key technology: MX
- Service life, standard key: > 50 million key operations
- Operation characteristics: Linear
- Inscription technology: Laser
- Inscription layout: Normal
Touchpad:
- Resolution: 1000 dpi
- Number of Keys: 2
Packaging Unit:
- Number of products in the master package: 66
- Number of master packages per pallet: 2
