MATROX VIDEO CARD M9188 PCIE16 MULTIDISPLAY MONITORING OCTAL GRAPHICS CARD RTL (M9188-E2048F)
MATROX VIDEO CARD M9188 PCIE16 MULTIDISPLAY MONITORING OCTAL GRAPHICS CARD RTL (M9188-E2048F)
MATROX VIDEO CARD M9188 PCIE16 MULTIDISPLAY MONITORING OCTAL GRAPHICS CARD RTL (M9188-E2048F)
MATROX VIDEO CARD M9188 PCIE16 MULTIDISPLAY MONITORING OCTAL GRAPHICS CARD RTL (M9188-E2048F)
MATROX VIDEO CARD M9188 PCIE16 MULTIDISPLAY MONITORING OCTAL GRAPHICS CARD RTL (M9188-E2048F)
MATROX VIDEO CARD M9188 PCIE16 MULTIDISPLAY MONITORING OCTAL GRAPHICS CARD RTL (M9188-E2048F)
MATROX VIDEO CARD M9188 PCIE16 MULTIDISPLAY MONITORING OCTAL GRAPHICS CARD RTL (M9188-E2048F)

MATROX VIDEO CARD M9188 PCIE16 MULTIDISPLAY MONITORING OCTAL GRAPHICS CARD RTL

31 704:-
39 630:- inkl. moms

Inte i lager
Kontakta mig när varan finns i lager
Antal:
Lägg i kundvagn
SKU: M9188-E2048F
GPU-familj:
Matrox
Gränssnitt:
PCI Express x16
Videominne:
2GB
Videominnetyp:
GDDR2
HDMI:
0
Displayport:
0
USB-C:
0
Profile:
Normal
Kyltyp:
Aktiv

Matrox M9188 PCIe x16

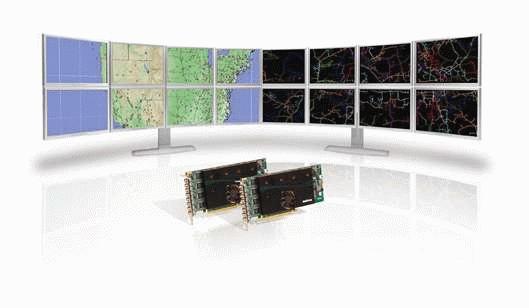

Drive Multi-Display Monitoring Environments with Feature-Rich Octal Graphics Card

The Matrox M9188 PCIe x16 multi-display Octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.

  • High-resolution eight DisplayPort or DVI monitor support
  • Support resolutions up to 2560 x 1600 (DisplayPort) and 1920 x 1200 (DVI) per output
  • Native PCI Express (PCIe) x16 performance
  • Maximum bandwidth to ensure best performance
  • 2 GB of memory
  • For enhanced performance in demanding multi-monitor control room monitoring applications
  • ATX form factor
  • Stretched and independent desktop modes1
  • Expand your desktop across multiple monitors or set each monitor independent of each other
  • M-Series multi-card support2
  • Add multiple Matrox cards into the same system to drive up to 16 displays
  • Joined graphics card mode2
  • Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
  • Matrox Clone
  • View a copy of one display on the other displays
  • Wide enterprise flexibility
  • Unified driver package compatible with other Matrox products
  • Matrox PowerDesk software
  • Easily configure and manage program windows on multiple monitors
  • Multiple operating system support
  • Display drivers for Windows® 7 (32/64 bit)3, Windows Vista (32/64 bit)3, Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux

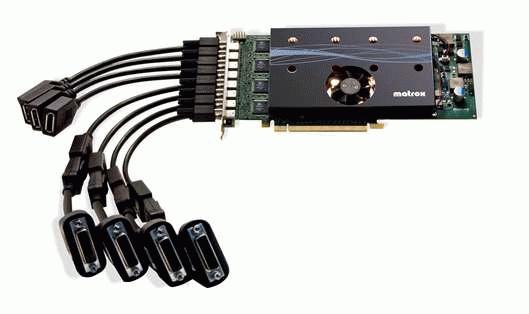

Hardware Included

  • Matrox M9188 PCIe x16 graphics card (with factory-installed ATX bracket)
  • Eight miniDisplayPort to DisplayPort adapters
  • Eight DisplayPort to DVI adapters

Software Included

  • CD with link to latest Matrox display drivers and PowerDesk desktop management software

1 Stretched desktop not currently supported under Windows 7.
2 Operating system, hardware and driver compatibility need to be verified for large monitor
configuration arrays.
3 Limited support under Windows 7 and Microsoft Windows Vista.

Part Number M9188-E2048F
Bus Type PCIe x16
Graphics Memory 2048MB
Card Form Factor (PCB / bracket) ATX
Extra bracket in the box –
Card Dimensions 9.0" (L) x 4.4" (H)
On-board Connectors 8 x Mini DisplayPort
Connector Adapters 8 x Mini DisplayPort to DisplayPort, 8 x DisplayPort to DVI
Max Display Outputs per Card 8
Supported Display Output Types DisplayPort , DVI SL
Max DisplayPort Resolution per Output 2560x1600
Max DVI Resolution per Output 1920x1200
Independent Desktop Mode Yes
Stretched Desktop Mode Yes1
Matrox Clone Yes
Pivot Support Yes
Passive Cooling No
Unified Driver Package Yes
PowerDesk Software Yes
EMC Certifications Class B
Aftermarket Cable/Adapter Upgrades –
Supported Operating Systems Windows® 7 (32/64bit)2, Windows Vista (32/64bit)2, Windows XP (32/64bit), Windows Server 2003/2008 (32/64bit), and Linux
Open GL support 2.0
Environmental ROHS & WEEE compliant
Warranty 3 years

Processor
Grafikprocessorfamilj
Matrox
Maximal upplösning
2560 x 1600 pixlar
CUDA
No
Stöd för parallellprocessteknik
Stöds inte
Maximal digital upplösning
2560 x 1600 pixlar
Max antal skärmar per grafikkort
8
Minne
Minneskapacitet, diskret grafikkort
2 GB
Anslutningar
Gränssnittstyp
PCI Express x16
Antal HDMI-portar
0
Antal DVI-I anslutningar
0
Videoingång
No
Kvalitet på VGA (D-Sub) porten
0
Antal Mini Displayportar
8
Prestanda
PhysX
No
Inbyggd TV mottagare
No
OpenGL-version
2.0
HDCP
No
Dual Link-DVI
No
Full HD
Yes
Design
Kylning typ
Aktiv
Formfaktor
Full-Height/Full-Length (FH/FL)
Fästets höjd
Full-Height (FH)
Certifiering
EMC B ROHS & WEEE
Systemkrav
Windows-operativsystem som stöds
Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac-operativsystem som stöds
Nej
Linux operativsystem som stöds
Ja
Serveroperativsystem som stöds
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Vikt & dimension
Vikt
406 g
Produktlängd
167,6 mm
Höjd
111,2 mm
Övrigt
Mac-kompatibel
No
HDMI
No
Grafikadapterfamilj
Matrox
Kompatibla produkter
Microsoft Windows 7 (32/64bit) Microsoft Windows XP (32/64bit) Microsoft Windows Vista (32/64bit) Microsoft Windows Server 2003/2008 (32/64bit) Linux
Logistikdata
Harmonized System (HS)-kod
84733020
