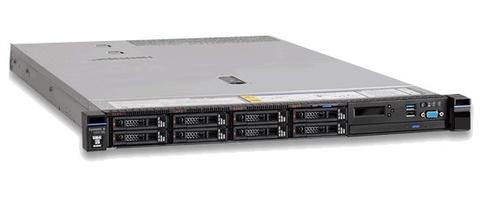

LENOVO System 3550 M5 Server Rack (5463NEG)
LENOVO System 3550 M5 Server Rack (5463NEG)
LENOVO System 3550 M5 Server Rack (5463NEG)
LENOVO System 3550 M5 Server Rack (5463NEG)
LENOVO System 3550 M5 Server Rack (5463NEG)
LENOVO System 3550 M5 Server Rack (5463NEG)

LENOVO System 3550 M5 Server Rack

Artikelnr:
5463NEG
EAN:
0889488010196
  • Typ Rack (1U)
  • CPU-familj Intel® Xeon E5 v3
  • Processor E5-2670V3
  • Antal installerade processorer 1
  • Max processorar 2
  • Max diskar 12
  • Installerat minne 16GB
  • Max minne 1.5TB
  • Modell Lenovo System
  • Redundant PSU Ja
  • Garanti / Månader 36
  • CTO / BTO Nej
53 668:-
67 085:- inkl. moms
Inte i lager
Kontakta mig när varan finns i lager
Antal:
Lägg i kundvagn
Beskrivning
Specifikationer

Designed in a compact, versatile 1U two-socket rack server, the Lenovo System x3550 M5 rack server fuels almost any workload from infrastructure to high-performance computing (HPC) to cloud or big data with leadership security, efficiency, and reliability. Integrated with up to two Intel Xeon processors of the E5-2600 v3 product family with faster, energy-efficient TruDDR4 Memory, the x3550 M5 delivers exceptional performance. Storage can include up to 12 drives in an impressive selection of sizes and types.

Table 1. System specifications
Components Specification
Machine type 5463
Form factor 1U rack-mount
Processor Up to two Intel Xeon processor E5-2600 v3 product family CPUs with 18 or 16 cores (2.3 GHz core speeds); or 14, 12, or 10 cores (up to 2.6 GHz core speeds); or 8 cores (up to 3.2 GHz core speeds); or 6 cores (up to 3.4 GHz core speeds); or 4 cores (up to 3.5 GHz core speeds). Two QPI links up to 9.6 GT/s each. Up to 2133 MHz memory speed. Up to 45 MB L3 cache.
Chipset Intel C612.
Memory Up to 24 DIMM sockets (12 DIMMs per processor). RDIMMs and LRDIMMs (Load Reduced DIMMs) are supported. Memory types cannot be intermixed. Memory speed up to 2133 MHz.
Memory maximums
  • With RDIMMs: Up to 768 GB with 24x 32 GB RDIMMs and two processors
  • With LRDIMMs: Up to 1.5 TB with 24x 64 GB LRDIMMs and two processors
Memory protection Error correction code (ECC), Chipkill (for x4-based memory DIMMs).
Drive bays
  • Up to 12x 2.5" SAS/SATA hot-swap drive bays: 10x 2.5" (front) + 2x 2.5" (rear)
  • Up to 8x 2.5" SAS/SATA hot-swap drive bays: 4x 2.5" (front) + 4x 2.5" (front)
  • Up to 8x 2.5" SATA Simple Swap drive bays: 4x 2.5" (front) + 4x 2.5" (front)
  • 4x 3.5" SAS/SATA hot-swap drive bays
  • 4x 3.5" SATA Simple Swap drive bays
Storage capacity
  • Up to 46 TB with 3.84 TB 2.5" SAS SSDs
  • Up to 40 TB with 10 TB 3.5" NL SAS or NL SATA HDDs
  • Up to 24 TB with 2 TB 2.5" NL SATA HDDs
  • Up to 21.6 TB with 1.8 TB 2.5" SAS HDDs
Intermix of SAS and SATA drives is supported.
Storage controller
  • Onboard 6 Gb SATA: no RAID support
  • 12 Gb SAS/SATA RAID: RAID 0, 1, 10 with M1215 or M5210. Optional upgrade to RAID 5, 50 is available for M1215. Optional upgrade to RAID 5, 50 is available for M5210 (zero-cache; 1 GB non-backed cache; 1 GB, 2 GB, or 4 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with memory cache upgrades. Optional SSD Caching and Performance Accelerator upgrades are available.
  • 12 Gb SAS/SATA non-RAID: N2215 HBA
Optical drive bays One, optional, for models with 4 or 8 drive bays (models with 10 drive bays do not support an internal optical drive). Support for DVD-ROM or Multiburner.
Tape drive bays None.
Network interfaces
  • 4x Integrated RJ-45 Gigabit Ethernet 1000BASE-T ports (BCM5719).
  • 1x Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors or quad-port GbE cards with RJ-45 connectors.
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
PCI Expansion slots Up to four slots, depending on the riser cards installed. The slots are as follows:
  • Slot 1: PCIe 3.0 x16 or ML2; low profile, half-length (not present if the HDD Rear Kit is installed)
  • Slot 2: PCIe 3.0 x16 or PCIe 3.0 x8; low profile or full-height, half-length (PCIe 3.0 x16 slot requires the second processor to be installed) (not present if the HDD Rear Kit is installed)
  • Slot 3: PCIe 3.0 x16 or PCIe 3.0 x8; low profile, half-length
  • Slot 4: PCIe 3.0 x8 (dedicated for an internal RAID controller)
Ports
  • Front: 1x USB 2.0 (8x 2.5" drive bay models) or 2x USB 2.0 l (4x 3.5" and 10x 2.5" drive bay models), 1x USB 3.0, and 1x DB-15 video.
  • Rear: 2x USB 3.0, 1x USB 2.0, ans 1x DB-15 video. Optional 1x DB-9 serial port.
  • Internal: 1x USB 3.0 port (for embedded hypervisor).
  • Internal: 1x SD Media Adapter slot (for embedded hypervisor)
Cooling Calibrated Vectored Cooling with up to eight redundant hot-swap fans (six standard, additional two with the second processor or with the x3550 M5 Thermal Solution Kit); dual fan zones with N+1 fan redundancy; each fan has two motors.
Power supply Up to two redundant hot-swap 550 W, 750 W, or 900 W (100-240V), or 1500 W (200-240V) High Efficiency Platinum AC power supplies, or 750 W High Efficiency Titanium AC power supplies, or 900 W High Efficiency -48 V DC power supplies.
Hot-swap parts Hard drives, power supplies, and fans.
Systems management Unified Extensible Firmware Interface (UEFI), Integrated Management Module II (IMM2.1) based on Renesas SH7758, Predictive Failure Analysis, light path diagnostics, Automatic Server Restart, ToolsCenter, XClarity Administrator, and Intel Node Manager. Optional Advanced Management Module Advanced Upgrade for remote presence (graphics, keyboard and mouse, virtual media).
Security features Power-on password, administrator's password, Trusted Platform Module (TPM) 2.0-ready. Optional lockable front bezel.
Video Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.
Operating systems Microsoft Windows Server 2008 R2, 2012, 2012 R2, and 2016; Red Hat Enterprise Linux 6 and 7; SUSE Linux Enterprise Server 11 and 12; VMware vSphere (ESXi) 5.1, 5.5, 6.0, and 6.5.
Limited warranty Three-year customer-replaceable unit and onsite limited warranty with 9x5/Next Business Day (NBD).
Service and support Optional service upgrades are available through the Lenovo Services: 4-hour or 2-hour response time, 8 hours fix time, one-year or two-year warranty extension, remote technical support for System x hardware and selected System x and third-party (Microsoft, Linux, VMware) software.
Dimensions Height: 43 mm (1.7 in), width: 429 mm (16.9 in), depth: 734 mm (28.9 in)
Weight Minimum configuration: 13.8 kg (30.5 lb), maximum: 19.3 kg (42.7 lb)
